Mooring Buoys
Heavy-Duty Marine Positioning & Anchor Buoys
General Overview
Polyethylene Shell
Thickness from 6 mm to 12 mm configured according to total buoy volume.
Polystyrene Injected
Expanded polystyrene core for maximum unsinkability and structural integrity.

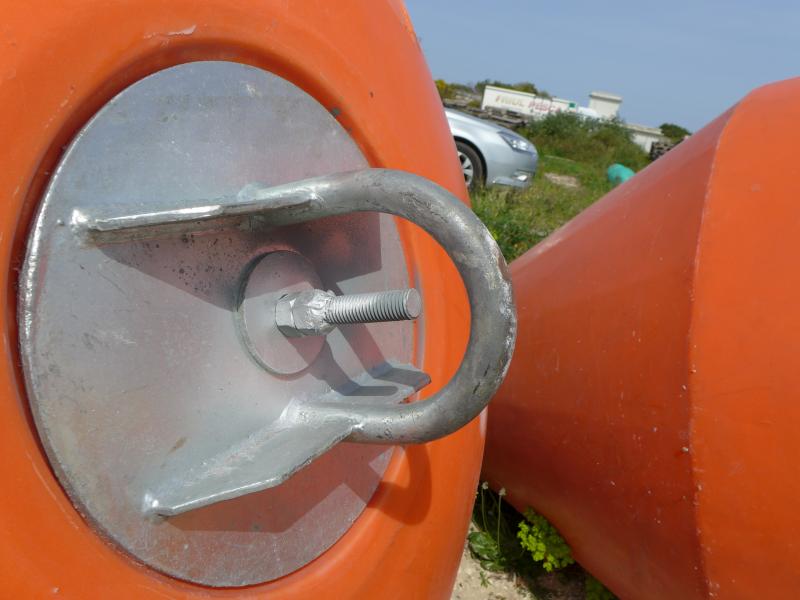

Reinforced Steel Hardware
Fitted with hot-galvanised steel A45 tubes and/or rope eyelets as per customer requirement.
MOORING SYSTEMS DATA SHEET
Official Technical Specification & Engineering Document (PDF)
HIGH VOLUME CONFIGURATION

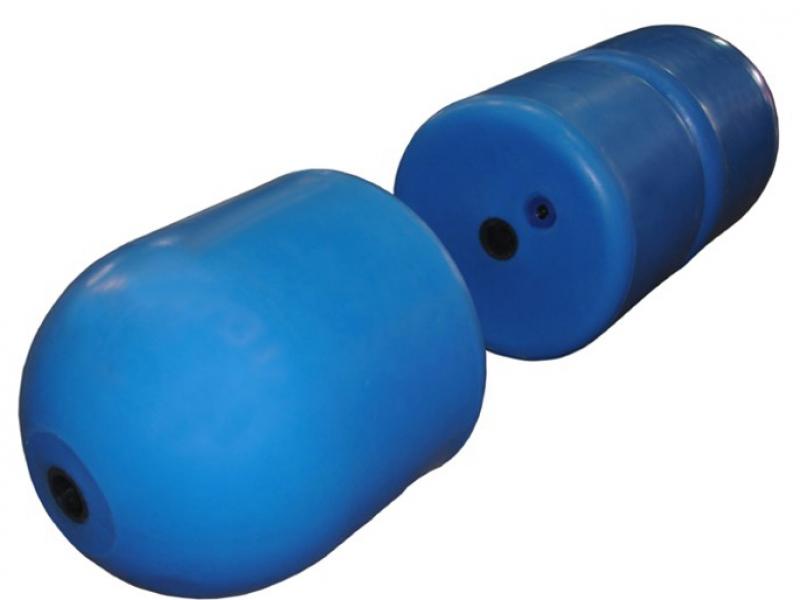

Modular Buoys
| Volume Range | 1000 Liters to 2500 Liters |
|---|---|
| Core Fill | Polystyrene injected in all segments |
| Segment Diameter | 1140 mm |
| Spherical Segment Height | 670 mm |
| Cylindric Segment Height | 580 mm |
| Steel Fittings | Hot-galvanised steel A45 tubes & rods customized to client specifications |
MEDIUM CAPACITY

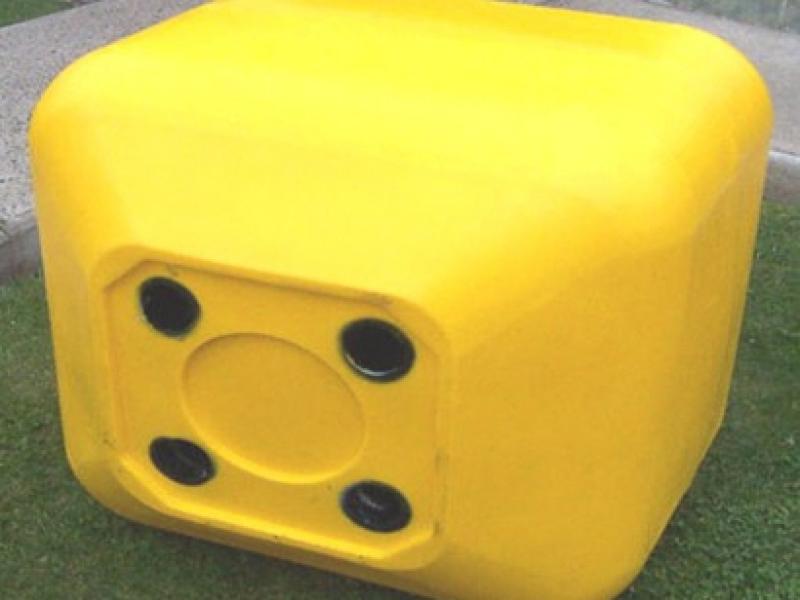

Nordic Buoys
- Available Volumes 650 L & 1,000 L
- Internal Core: Polystyrene injected for extreme buoyancy stability.
- Structural Anchoring: Fitted with hot-galvanised steel A45 tubes and/or rods as per customer requirements.
CONICAL SPECIFICATION

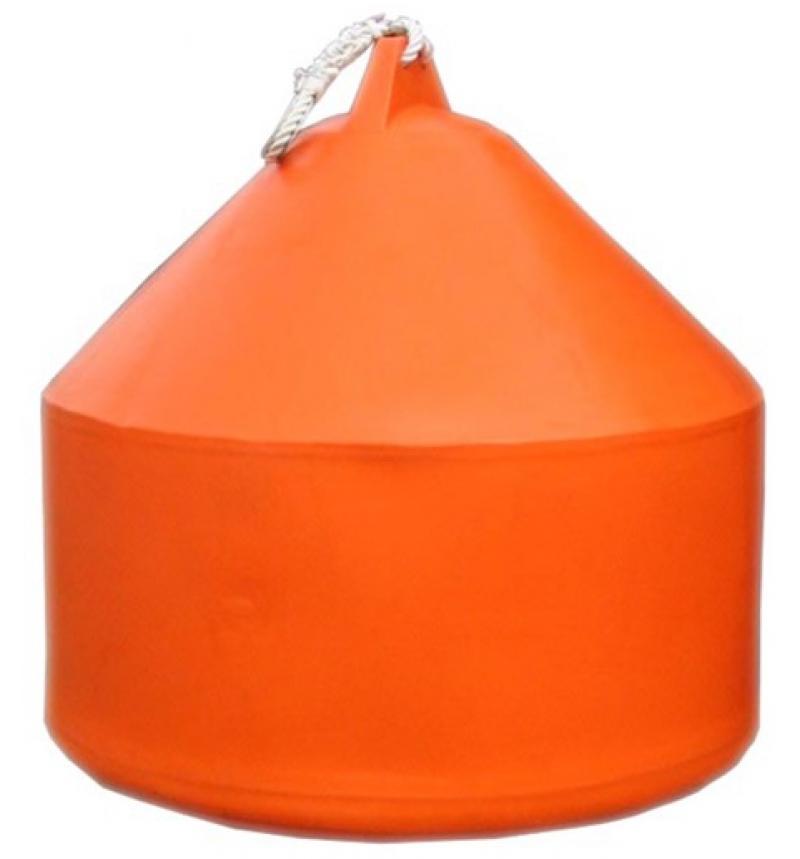

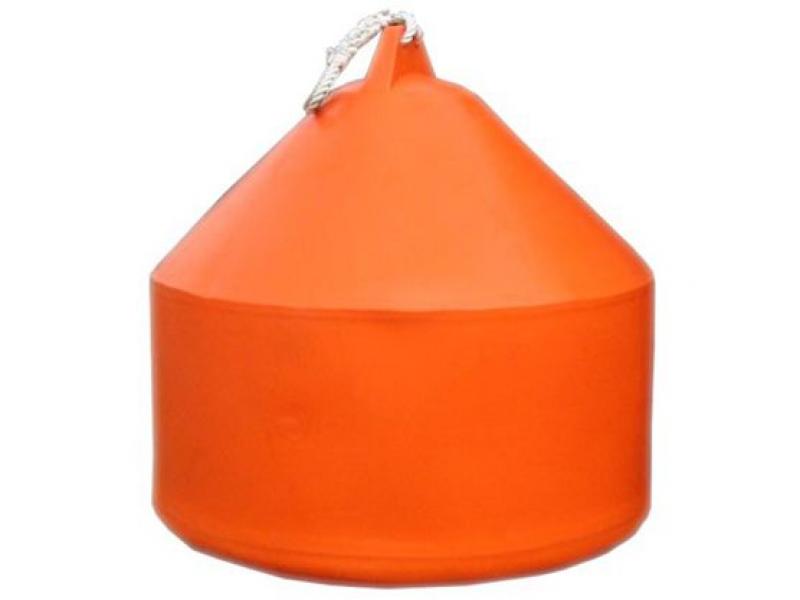

Conical Buoy
| Available Volumes | 250 L 500 L 1100 L 2000 L |
|---|---|
| Core Insulation | Expanded polystyrene injected |
| Polyethylene Shell | 6 mm to 10 mm thickness depending on buoy volume |
| Rope Eyelets | Sized from 3/4" to 1 1/2" |
