I/O Sensor Diagnostics - Hybrid Energy System
ESP32 Live Integrated System
Digital I/O (DI/DO) Kontrol & Proteksi
Relay, Contactor & Breaker Control
| Channel | Nama Perangkat / Periferal | Indikator Port | Simulasi & ESP32 Pin | Status / State |
|---|---|---|---|---|
| DI-01 | Emergency Push Button Breaker |
ON
|
|
NORMAL (CLOSED) |
| DI-02 | VAWT Mechanical Brake Feedback Switch |
ON
|
|
RELEASED (OFF) |
| DI-03 | Solar DC SPD (Surge Protection Device) |
ON
|
|
HEALTHY (OK) |
| DO-01 | Main Battery Contactor Relay 48V |
ON
|
|
ENERGIZED (ON) |
| DO-02 | VAWT Dump Load Resistor Contactor |
OFF
|
|
STANDBY (OFF) |
| DO-03 | LoRa Remote Command Indicator LED |
ON
|
|
BLINKING (LINKED) |
Analog Telemetry & Sensor Mapping (AI)
Voltage, Current, Temp & Anemometer
| Port | Parameter Sensor Utama | Indikator Port | Simulasi & ESP32 Pin | Nilai Realtime |
|---|---|---|---|---|
| AI-01 | Anemometer Kecepatan Angin (VAWT) |
ON
|
|
11.4 m/s |
| AI-02 | Pyranometer Solar Irradiance Sensor |
ON
|
|
890 W/m² |
| AI-03 | Sensor Tegangan & Arus String PV |
ON
|
|
76.2 V / 35.4 A |
| AI-04 | Sensor Suhu Stator Generator & PV Modul |
ON
|
|
48.2 °C / 41.0 °C |
| AI-05 | LiFePO4 BMS Battery Voltage & SOC |
ON
|
|
53.6 V / 88% SOC |
| AI-06 | LoRa RSSI Signal Strength Module |
ON
|
|
-68 dBm (Optimal) |

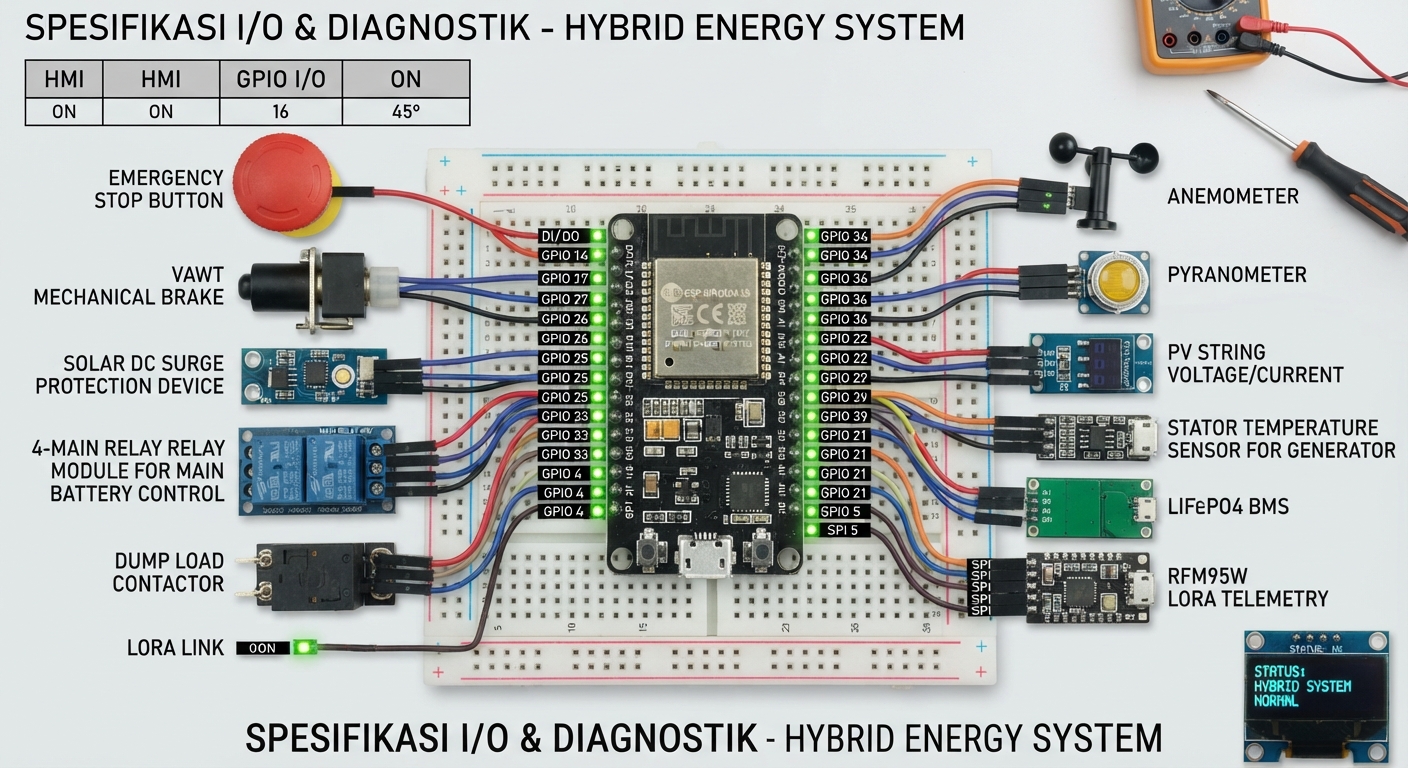

ESP32 Landscape Pinout Map
MCU Visual Feedback
ESP32 Landscape Pinout Map
MCU Visual Feedback
