I/O Sensor Diagnostics & ESP32 Pin Map - BSB VAWT
Input Sensor (AI / DI)
Anemometer, RPM, Vibe & Temp
| Kanal | Nama Sensor / Periferal | Tipe | Indikator | Pinout ESP32 | Simulasi Sinyal |
|---|---|---|---|---|---|
| AI-01 | Cup/Ultrasonic Anemometer (Kecepatan Angin) | Analog In |
ON
|
GPIO 34 |
|
| AI-02 | Wind Vane (Arah Angin) | Analog In |
ON
|
GPIO 35 |
|
| AI-03 | Magnetic Hall Sensor / Encoder (Rotor RPM) | Pulse / AI |
ON
|
GPIO 32 |
|
| AI-04 | PMSG Generator Voltage & Current Transducer | Analog In |
ON
|
GPIO 33 |
|
| AI-05 | Accelerometer / Vibration Sensor (Bearing Status) | Analog In |
ON
|
GPIO 36 |
|
| AI-06 | PT100 / Thermistor Suhu Generator & Bearing | Analog In |
OFF
|
GPIO 39 |
|
Output Aktuator & Kontrol (DO)
Brake, Dump Load & Telemetri
| Kanal | Nama Perangkat / Aktuator | Tipe I/O | Indikator | Pinout ESP32 | Simulasi Sinyal |
|---|---|---|---|---|---|
| DO-01 | Electromagnetic Mechanical Brake Relay | Digital Out |
OFF
|
GPIO 25 |
|
| DO-02 | Dump Load Resistive Bank (PWM Driver) | PWM / DO |
OFF
|
GPIO 26 |
|
| DO-03 | LoRa SX1276 Telemetry Transceiver Node | Serial / SPI |
ON
|
GPIO 27 |
|
| DO-04 | Emergency Shutdown Interlock Line | Digital Out |
ON
|
GPIO 14 |
|
| DO-05 | Main System Power Contactor / Breaker | Digital Out |
ON
|
GPIO 12 |
|

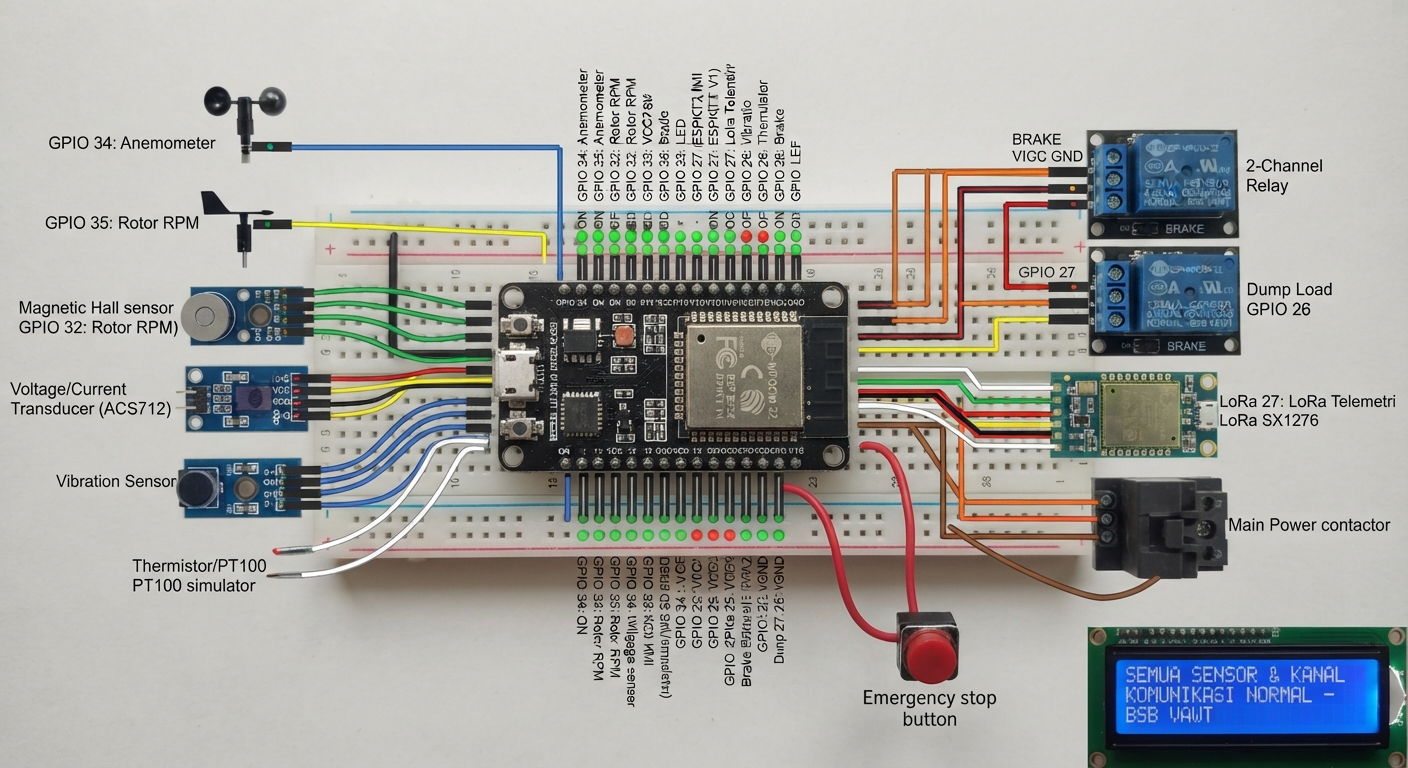

ESP32 Landscape Pinout Map[cite: 10]
ESP32 Landscape Pinout Map
