I/O Sensor Diagnostics - LED FAD & Trap Control
ESP32 Live Integrated System
Digital I/O (DI / DO) Sistem Subsea
Relay, Solenoid Gate & Interlock
| Channel | Nama Perangkat / Periferal | Indikator Port | Simulasi Sinyal & Pin | Status Realtime |
|---|---|---|---|---|
| DI-01 | Enclosure Leak Sensor |
ON
|
|
DRY (OK) |
| DI-02 | Trap Gate Limit Switch (Open) |
ON
|
|
ACTIVE (OPEN) |
| DI-03 | Trap Gate Limit Switch (Close) |
OFF
|
|
INACTIVE |
| DI-04 | Subsea Main Power Breaker |
ON
|
|
CLOSED (ON) |
| DO-01 | Solenoid Actuator Trap Gate |
OFF
|
|
STANDBY |
| DO-02 | LED Driver Master Power Relay |
ON
|
|
ENERGIZED |
| DO-03 | Emergency Beacon Strobe Light |
OFF
|
|
OFF |
Analog Telemetry & Sensor Mapping (AI)
PWM Driver, Sonar & Power Bus
| Port | Parameter Sensor Utama | Indikator Port | Simulasi Sinyal & Pin | Nilai Realtime |
|---|---|---|---|---|
| AI-01 | LED Driver PWM (Green - 520nm) |
ON
|
|
90.0% |
| AI-02 | LED Driver PWM (Blue - 465nm) |
ON
|
|
75.0% |
| AI-03 | LED Driver PWM (UV - 395nm) |
ON
|
|
60.0% |
| AI-04 | Hydro-Sonar Biomass Sensor |
ON
|
|
76.0 (High) |
| AI-05 | Internal Pressure Transducer |
ON
|
|
1.85 Bar |
| AI-06 | Solar Charging Current Sensor |
ON
|
|
8.5 A (220W) |

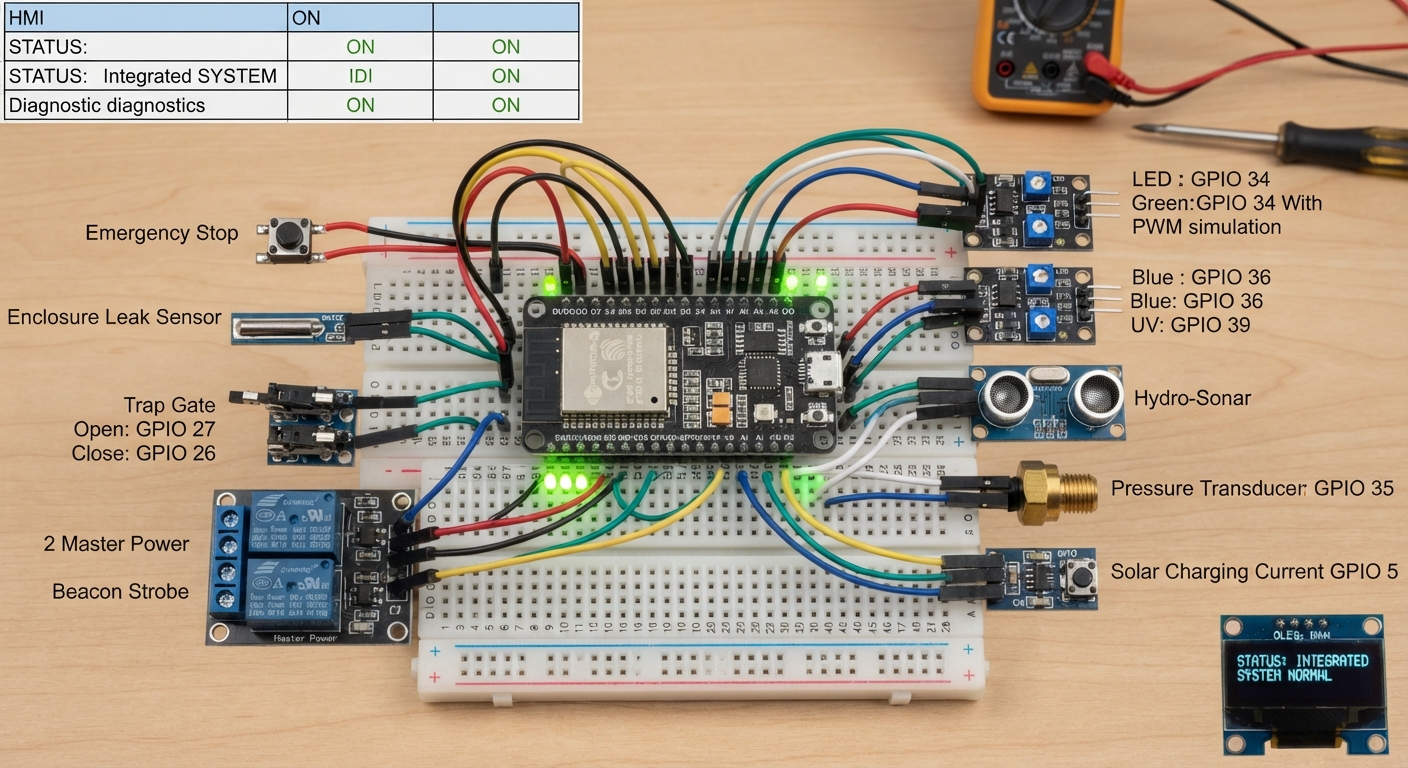

ESP32 Landscape Pinout Map
MCU Visual Feedback
ESP32 Landscape Pinout Map
MCU Visual Feedback
