I/O Sensor Diagnostics - Marine Solar Power
Digital I/O (DI / DO) Sistem Marine
Relay, Bilge & Limit Switch
Channel Nama Perangkat / Periferal Tipe Indikator Port Simulasi Sinyal & Pin ESP32
DI-01 Enclosure Bilge Leak Sensor (Air Laut) Digital In
ON
GPIO 14
DI-02 Dual-Axis Linear Actuator Limit (East Max) Digital In
OFF
GPIO 27
DI-03 Dual-Axis Linear Actuator Limit (West/Home) Digital In
ON
GPIO 26
DI-04 Main Battery Breaker Trip Status Digital In
ON
GPIO 25
DO-01 Actuator Motor Direction Relay (H-Bridge) Digital Out
OFF
GPIO 33
DO-02 Auto-Wiper Desalination Sprinkler Contactor Digital Out
OFF
GPIO 4
DO-03 Emergency Beacon / Strobe Light Warning Digital Out
OFF
GPIO 12
Analog Telemetry & Sensor Mapping (AI)
MPPT, Pyranometer & Weather Station
Port Parameter Sensor Utama Rentang / Satuan Indikator Port Simulasi Sinyal & Pin ESP32
AI-01 Solar PV String Voltage Sensor (Vmp) 0-150 VDC
ON
GPIO 34
AI-02 MPPT Charging Current Sensor (Imp) 0-100 A
ON
GPIO 36
AI-03 Pyranometer (Solar Irradiance Sensor) 0-1500 W/m²
ON
GPIO 39
AI-04 LiFePO4 Battery Bank Voltage Sensor 0-60 VDC
ON
GPIO 32
AI-05 Anemometer (Kecepatan Angin Laut) 0-50 Knot
ON
GPIO 35
AI-06 Enclosure Internal Temperature Transducer -20 to +80 °C
OFF
GPIO 5
ESP32 Landscape Pinout Map & Control Integration
Visualizer
ESP32 Landscape Pinout Map & Control Integration
Visualizer

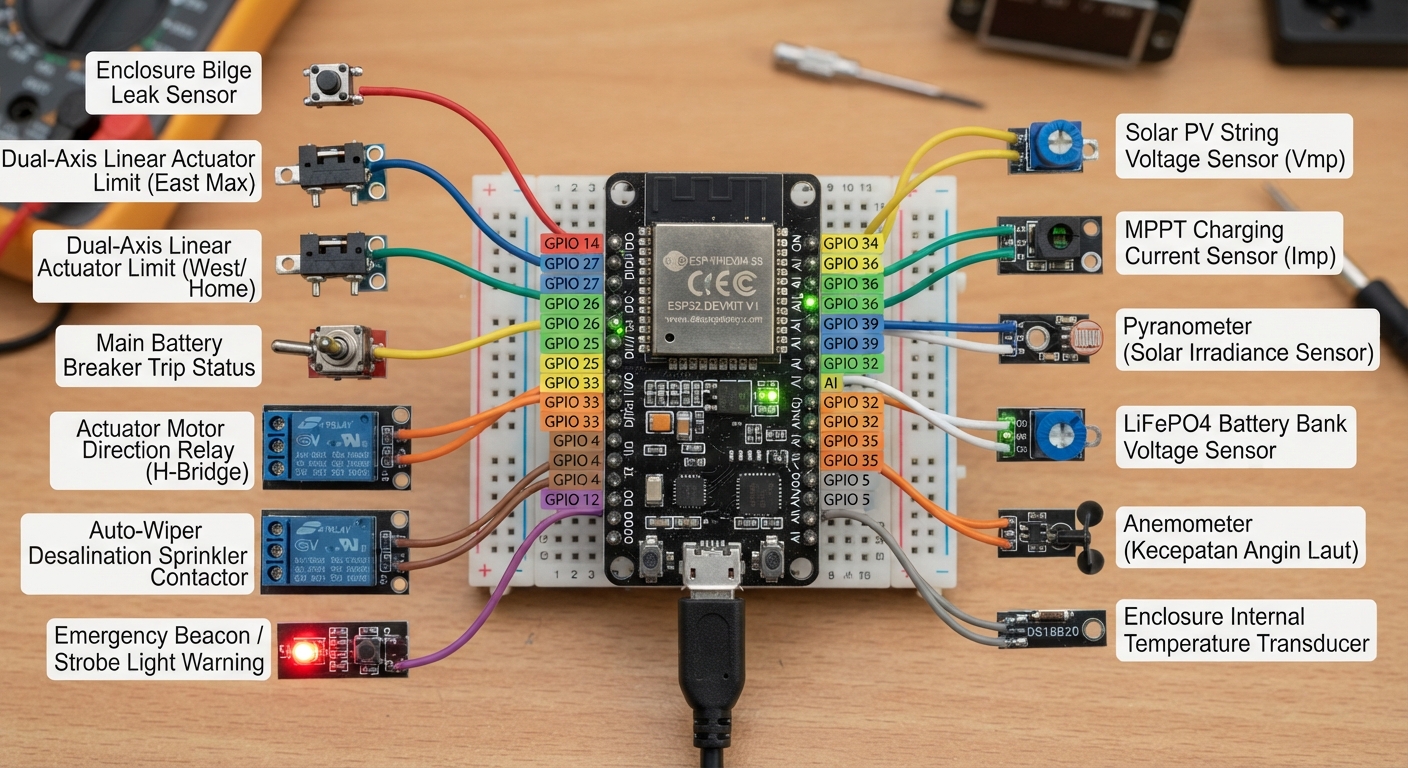

ESP32 Landscape Pinout Map
Status Diagnostik I/O: SELURUH KANAL SENSOR DAN AKTUATOR BEROPERASI NORMAL
Update Terakhir: 19:42:05 WIB
